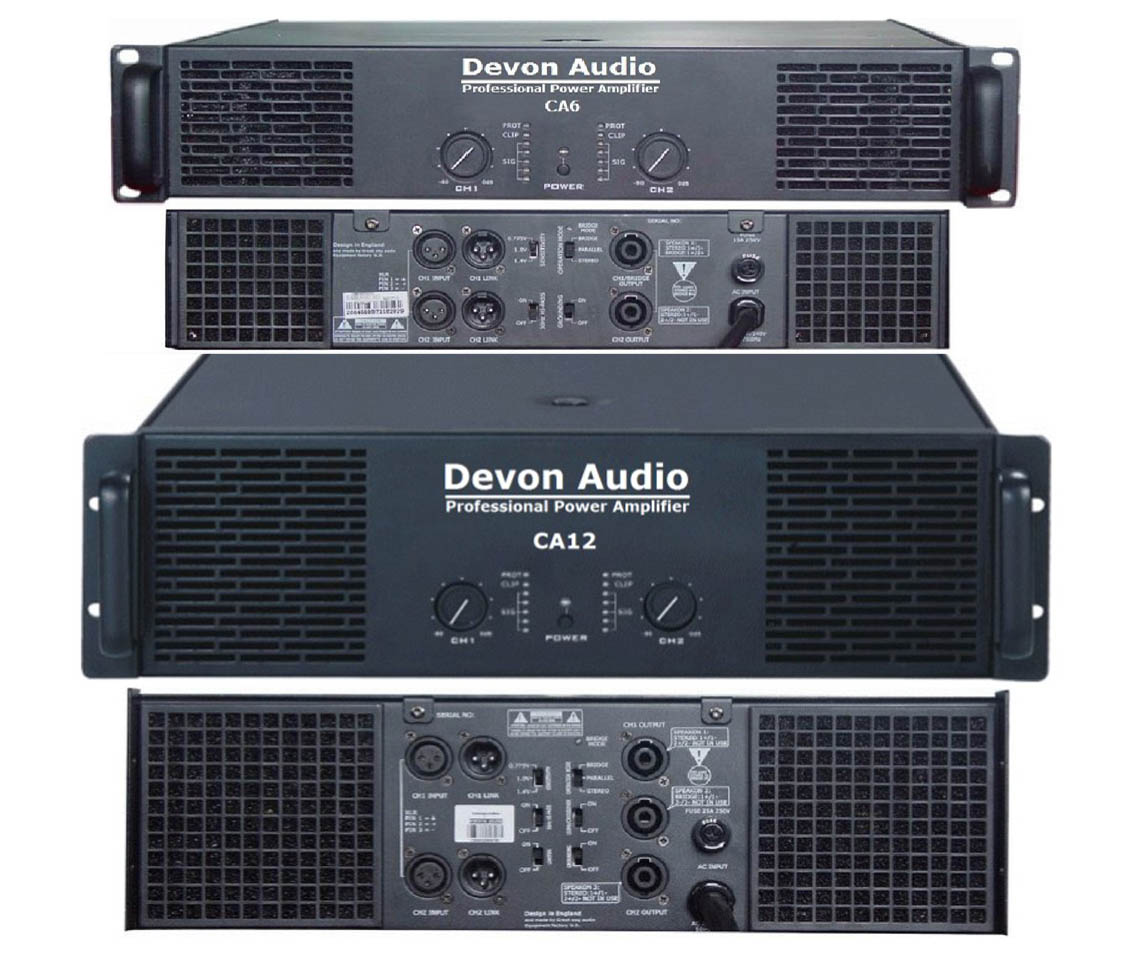

CA Series Amplifier


Products Name:CA Series Power Amplifier,Crest Audio Circuit Amplifier,Professional Power Amplifier


Description:

The CA Series design provides economical access to the premium sound quality of the Devon Audio Pro Series. Professional power-handling capabilities and exceptional low-end response make these amplifiers an ideal choice for installations and touring applications that demand the finest audio quality.


Specification:


Model

CA400

CA600

CA800

CA1000

CA1200

20Hz-20KHz,0.1% THD+N



8ΩStereo Power

400Wx2

600Wx2

800Wx2

1000Wx2

1200Wx2

4ΩStereo Power

600Wx2

900Wx2

1200Wx2

1500Wx2

1800Wx2

8ΩBridge Mono Power

1200W

1800W

2400W

3000W

3600W

Frequency Response (+/-0.3dB,1W/8Ω)

20Hz-20KHz,-3dB@100KHz

Protection

Soft Start, Short-circuit, thermal,

ultrasonic, Infrasonic DC fault, over current, ACL.

THD+N

<0.03%

<0.03%

<0.05%

<0.05%

<0.05%

Damping Factor

300:1

400:1

450:1

500:1

600:1

Input Sensitivity(Rated Power at 8Ω)

0.775V, 1.0V, 1.4V

Input Impedance (Balance/Unbalance)

20KΩ/Balance,  10KΩ/Unbalance

S/N Ratio

>95dB

Segregation ratio

>70dB

Slew Ratio

30V/μS

Input Connectors(per channel)

3-pin XLR

Output Connectors(per channel)

Neutrik® NL4 Speakon®

Power Supply(Factory Configured)

220V-240V,50-60Hz

Cooling

variable speed fans

Led Indicators

Protect, Clip, Signal, Power

Packing Dimensions

                     585x580x160

660x590x230

Height

                             2U

                                3U

Weight

25.0kgs

28.0kgs

36.0kgs

42.0kgs

45kgs

Warranty

12months
