Line Arrays

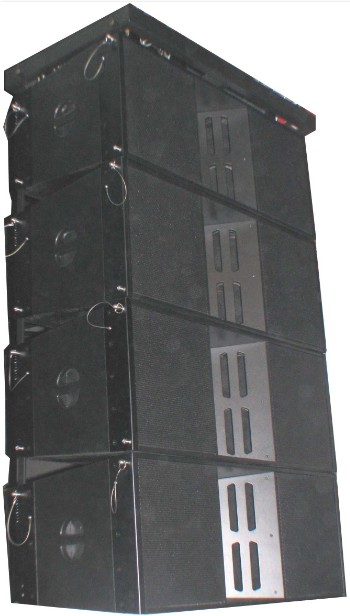

Products Name:LA15 line arrays


Description:

The LA15 is is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio and corporate A/V presentations of all types.which is made of two 15" woofers, four 8" midrange speaker units, two 3"compression drivers and high-performance low-distortion compression driver,brings superb line array performance to large stadiums, big outdoor concerts, commercial events, etc.

Specification:


LA15 Line Array Specifications

Frequency Response

40Hz-17kHz±3dB

Complement

2x15"+4x8"+2x3"

Horizontal Coverage Angle (-6dB)

75°degrees nominal



System Input Power Rating

LF:1200W Continous,4800W Peak(AES/2Hour)

MF:800W Continous,3200W Peak(AES/2Hour)

HF:300W Continous,1200W Peak(AES/2Hour)

Sensitivity

Low:99dB;Midrange:102dB;High:113dB

Nominal Impedance

Low:4Ω,Midrange:8Ω,High:4Ω

Maximum SPL Continuous

Low:130dB@1metre;Mid:132dB@1metre;

High:138dB@1 metre

Maximum SPL Peak

low:136dB@1metre;mid:138dB@1metre;

high:144dB@1metre

Net/ Gross

98/110Kgs

Dimensions (WxHxD)

1300mmx590mmx640mm

Input Connectors

2xSpeakon NL8MP Connectors

Grille Finish

Black Powder Coat Paint Finish

Cabinet Finish

AcoustiCoate Black Elastomer Finish

Box Construction

Wedge frustum,4degree side angle composited enclosure
