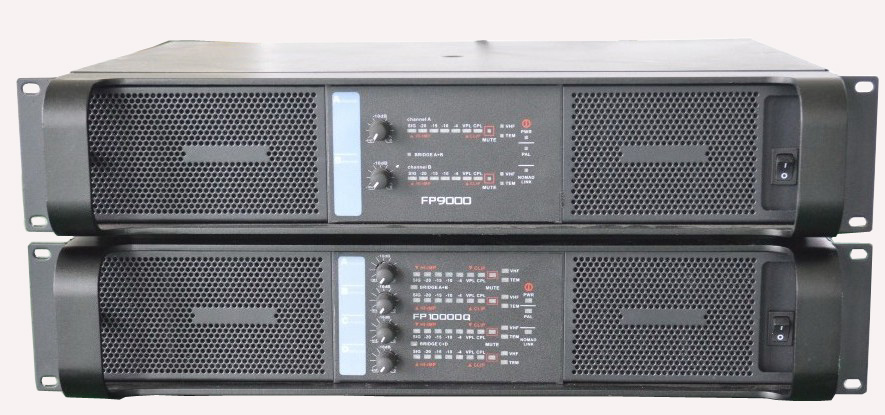

FP Series SMPS Amplifier


Products Name:FP Series SMPS Amplifier,Switch Model Power Supply Amplifier,Light Weight High Power Amplifier


Description:

FP series amplifiers are with switch power supply. Its compact and precise structure makes it high-performance. Each channel has independent adjustable peak output voltage, which enables the amplifier to drive speakers with different power easily. Intelligent protecting circuit provides advanced technology to protect the internal circuits and connected loads, so that the amplifiers and speakers can still be operated in extreme conditons. Applied to situations like Performance, Night Club, etc.

Specification:

Model FP7000 FP9000 FP14000 FP10000Q
20Hz-20KHz,0.1% THD+N
8ΩStereo Power(RMS) 1450WX2 1600WX2 2350WX2 1350WX4
4ΩStereo Power(RMS) 2800WX2 3000WX2 4400WX2 2100WX4
2ΩStereo Power(RMS) 3500WX2 4500WX2 7000WX2 2500WX4
8ΩBridged Power(RMS) 5600W 6000W 8800W 4200WX2
4ΩBridged Power(RMS) 7000W 9000W 14000W 5000WX2
Frequency Response(+o/-0.3dB,1W/8Ω) 20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W <0.1%
Signal-to-Noise Ratio >112 dBA
Channel separation (Crosstalk) at 1 kHz >70 dB
Input Connectors (per channel) 3-pin XLR, electronically balanced
Output Connectors (per channel) Binding Posts 2-pole
Class TD
TourClass Protection ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input
Operating voltage 110V/60Hz;220V/50Hz
Voltage Gain(dB) 23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance 20 kOhm
Level adjustment (per ch.) Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W×H×D) 483×88×396mm
Net weight(kg) 12
