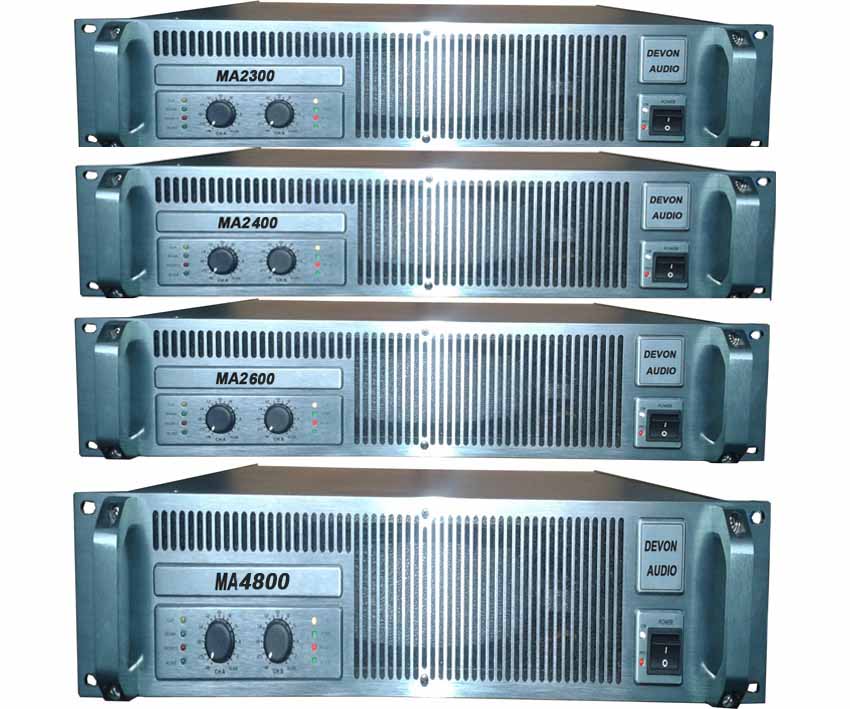

MA Series Amplifier


Products Name:MA Series Power Amplifier,Professional Power Amplifier


Description:


MA Series Power Amplifier is specially designed for high requested applications.It is ideal for using in high quality touring sound systems as well as in demanding permanent installations.The MA Power Amplifier have remarkable tone quality and impressing power output,adopting high integrated and parallel circuit, reduce fault rate sufficiently.

2U/3U rack mounting

Professional input and output terminals

Advanced cooling system and low noise design

Working mode conversion ( stereo, mono bridged and connected )

Overheat, Clipping, Overload, Short Circuit Protection and Soft Start

High requested occasions need high quality products.MA Series Amplifier create the most worth for you.


Specification:


Model

MA2200

MA2300

MA2400

MA2500

MA2600

MA2800

20Hz-20KHz,0.1% THD+N



8ΩStereo Power

225Wx2

300Wx2

400Wx2

500Wx2

600Wx2

800Wx2

4ΩStereo Power

360Wx2

480Wx2

640Wx2

800Wx2

1000Wx2

1350Wx2

8ΩBridge Mono Power

720W

960W

1280W

1600W

2000W

2700W

4ΩBridge Mono power

N/A

N/A

1600W

2080W

2400W

3100W

Frequency Response (+/-0.3dB,1W/8Ω)

20Hz-20KHz

Protection

Short-circuit, thermal, ultrasonic,

Infrasonic, DC fault, over current, ACL

Distortion(SMPTE-IMD)

<0.05%

0.05%

0.05%

Typical Distortion



1/8Rrated Power,20Hz-20KHz

<0.05%

<0.05%

<0.05%

Full Rated Power,20Hz-20KHz

<0.08%

<0.08%

<0.08%

Damping Factor

400:1

450:1

600:1

Input sensitivity (Rated Power at 8Ω)

0.775V

Input CMRR(1KHz)

                                                >-60dB

Input Impedance (Balance/Unbalance)

20KΩBalance,10KΩUnbalance

S/N+R(“A” Weight,Full power at 8Ω)

>95dB

Crosstalk (“A” Weight,Full power at 8Ω)

>-60dB

Circuitry

AB

H

Input Connectors(per channel)

3-pin XLR

Output Connectors(per channel)

2-Way Binding Posts or Neutrik® NL4 Speakon®

Power Supply(Factory Configured)

220V-240V,50-60Hz

Cooling System

Two rear panel variable speed DC fans.

Led Indicators

Protect,Clip,Signal,Power

Construction

Steel chassis

Dimensions(unpacking/packing)

89x483x506mm/160x580x585mm

Weight

20kgs

22kgs

24kgs

26kgs

27kgs

29kgs

Warranty

12Months
