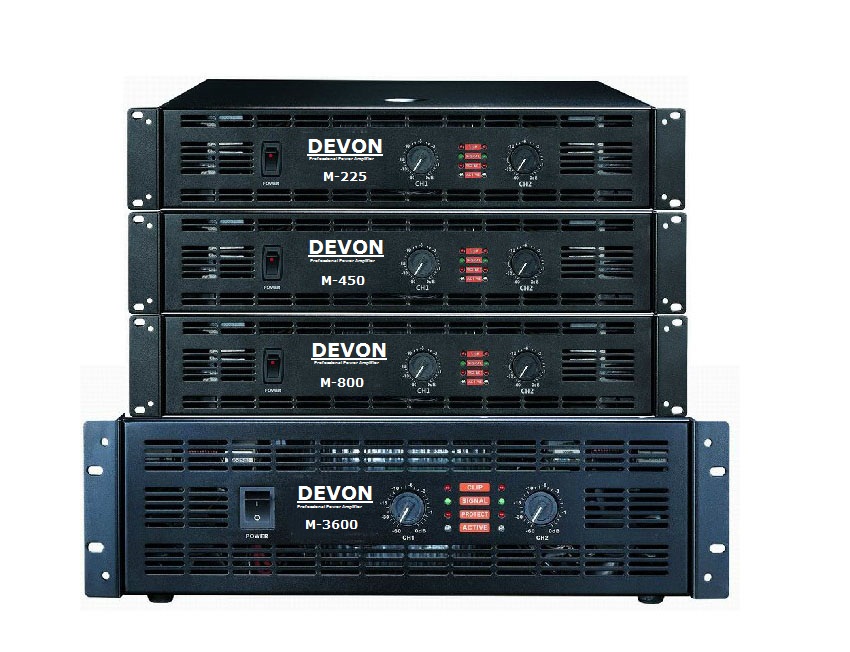

M Series Amplifier


Products Name:M Series Power Amplifier,Analog Amplifier


Description:


Engineered from the ground up for unmatched quality and performance, the M Series of power amplifier offers Eleven models from 180watts to 2250watts per channel at 4 ohms.  Input connections on balanced XLR, Speaker outputs on professional touch-proof  binding posts and speakon connectors, Ultra-reliable Toshiba power transistors.Independent thermal overload protection with LED indicator for each channel automatically protects amplifier and speakers.

2U/3U rack mounting

Professional input and output terminals

Advanced cooling system and low noise design

Working mode conversion ( stereo, mono bridged and connected )

Overheat, Clipping, Overload, Short Circuit Protection and Soft Start

If you want to gain the most cheers, then M Series power amplifier will be your best partner


Specification:


Model

M125

M225

M450

M650

M800

M3600

20Hz-20KHz,0.1% THD+N



8Ω Stereo Power

125Wx2

225Wx2

450Wx2

650Wx2

800Wx2

1200Wx2

4Ω Stereo Power

185Wx2

340Wx2

680Wx2

950Wx2

1200Wx2

    1800Wx2

8Ω Bridge Mono Power

230W

650W

1380W

1800W

2400W

3600W

FrequencyResponse(+/-0.3dB,1W/8Ω)

20Hz-20KHz

Protection

Short-circuit, thermal, ultrasonic,

Infrasonic, DC fault, over current, ACL.

Distortion(SMPTE-IMD)

<0.05%

<0.05%

0.08%

Damping Factor

    200:1

400:1

                  650:1

Input sensitivity(Rated Power at 8Ω)

0.775V

Input CMRR(1KHz)

                                       >-60dB

Input Impedance (Balance/Unbalance)

20KΩBalance, 10KΩUnbalance

S/N+R(“A” Weight,Full power at 8Ω)

>95dB

Crosstalk (“A” Weight,Full power at 8Ω)

>-60dB

Circuitry

AB

H

Input Connectors

3-pin XLR

Construction

Steel chassis

Power Supply(Factory Configured)

220V-240V,50-60Hz

Led Indicators

Protect, Clip, Signal, Power

Cooling

Two rear panel variable speed DC fans.

Output Connectors

2-Way Binding Posts or Neutrik® NL4 Speakon®

Dimensions Unpacking/Packing

89x483x429mm/160x585x580mm

Weight

12Kgs

17Kgs

22Kgs

25Kgs

27Kgs

38Kgs

Warranty

12 Months
