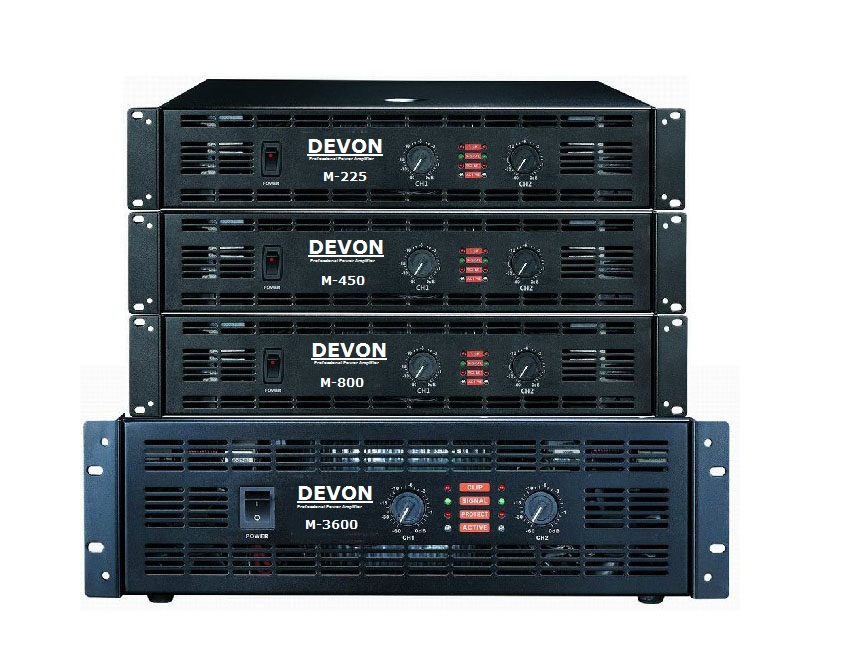

M系列功放


产品名称：M系列功放


产品摘要：

M系列专业功放输出功率涵盖了125W/8欧姆到1800W/8欧姆立体输出,它传承了模拟功放音质优美,互调失真低,音域广等众多优点.功放保护电路非常齐全,拥有过栽,过热,输出断路,直流,开关机扬声器保护等完善的保护措施;内置削波限幅电路,减少失真,保护扬声器,M系列非常适用于流动演出,会议室,适合在超级卡拉OK等场合使用.

产品介绍：


Model

M125

M225

M330

M450

M650

M800

M3600

M6000

20Hz-20KHz,0.1% THD+N



8ΩStereo Power

125Wx2

225Wx2

330Wx2

450Wx2

650Wx2

800Wx2

1200Wx2

1800Wx2

4ΩStereo Power

180Wx2

340Wx2

480Wx2

680Wx2

950Wx2

1200Wx2

1800Wx2

     2700Wx2

8ΩBridge Mono Power

250W

650W

950W

1380W

1900W

2400W

3600W

5400W

FrequencyResponse

20Hz-20KHz

Protection

Short-circuit, thermal, ultrasonic,

Infrasonic, DC fault, over current, ACL.

Distortion(SMPTE-IMD)

<0.05%

<0.05%

<0.08%

Damping Factor

     250:1

450:1

  650:1

Input sensitivity(Rated Power at 8Ω)

0.775V

Input CMRR(1KHz)

                                                                          >-60dB

Input Impedance (Balance/Unbalance)

20KΩBalance, 10KΩUnbalance

S/N+R(“A” Weight,Full power at 8Ω)

>95dB

Crosstalk(“A” Weight,Full power at 8Ω)

>-60dB

Circuitry

AB

H

Input Connectors

3-pin XLR

Construction

Steel chassis

Power Supply(Factory Configured)

220V-240V,50-60Hz

Led Indicators

Protect,Clip,Signal,Power

Cooling

Two rear panel variable speed DC fans.

Output Connectors

2-Way Binding Posts or Neutrik® NL4 Speakon®

Dimensions Packing

160x585x580mm/195x590x645mm

Weight

12kgs

17kgs

19kgs

22kgs

25kgs

27kgs

38kgs

45kgs

Warranty

12 Months
